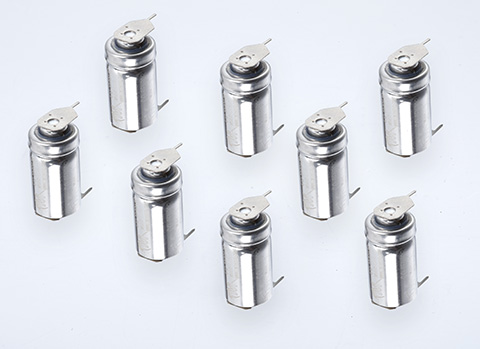

MP810 CO sensor Carbon Monoxide sensor
Main parameters:
Carbon monoxide detection range: 0-10000ppm
Output current: 0.8-2.0nA / ppm
Response time: <30S
High concentration recovery time: <30M
Working temperature: -10 ℃ ~ +60 ℃
Working humidity: 5 - 99% RH
Features:
1, Long life, electrochemical principle;
2, Low sensitivity to ethanol;
3, Can reduce influence of various interference gases, good linear output characteristics;
4, Good consistency;
5, Good carbon monoxide gas selectivity and repeatability;
6, Signal output of the sensor and concentration of carbon monoxide gas into a linear relationship;
7, With leading production technology and new advanced materials;
8, Electrolyte pollution, materials comply with RoHS requirements;
9, Strong anti-interference
Parameter information:
1 | Length | 29.3±0.1mm |
2 | Height | 19.3±0.1mm |
3 | Body diameter | 14.3±0.1mm |
4 | Component foot length | 3.45±0.1mm |
5 | Component feet spacing | 29±0.5mm |
6 | Detection accuracy | <3% |
7 | Detection range | 0-10000ppm |
8 | Output current | 0.8-2.0nA/ppm |
9 | Response time | <30s |
10 | High concentration recovery time | <30m |
11 | Working humidity | 5-99%RH |
12 | Operating temprature | -10℃-+60℃ |
13 | Repeatability | 1% F.S. |
14 | Hysteresis | 1% F.S. |
15 | Drift | 1 |
16 | Sensitivity | 1 |
17 | Material | Environmental |
18 | Protection class | IP55 |
19 | Lifetime of Product | 10 years |
Dimensions:
