Flame Detection Infrared Sensor - LVF002
Single Channel
To-39 Housing
Therm Compensition
Voltage Mode
Technical parameters:
Technical parameters | Symbol | Typical value | Unit |
Window size | Ф5.5 | mm | |
Element size | As | 2×2 | mm |
Electrical Time Constant | τE | 3.0 | s |
Thermal Time Constant | τT | 200 | ms |
Offset voltage | Vs | 0.4-0.8 | V |
Drain Voltage | Vd | 2-15 | V |
Field of View | FOV | >110 | ° |
Noise Density (10Hz, BW1Hz, 25℃) | Vn | <130 | nVrms/Hz1/2 |
Voltage Responsivity (Without Filter) (500K, 10Hz, 25℃) | Rv | ＞160 | V/W |
Detectivity(Without Filter) (500K, 10Hz, BW 1Hz, 25℃) | D | ＞4×108 | cm Hz1/2/W |
Working temperature | -40—+80 | ℃ |
Typical Filters parameters are shown in the below figure, other parameters can be customized according to specific requirements of customers.
CWL | 4400nm | 3800nm | 5300nm |
HPB | 450nm | 140nm | 180nm |
Detector type | LVF002-I-01 | LVF002-H-01 | LVF002-D-01 |
Package dimensions (unit: mm)

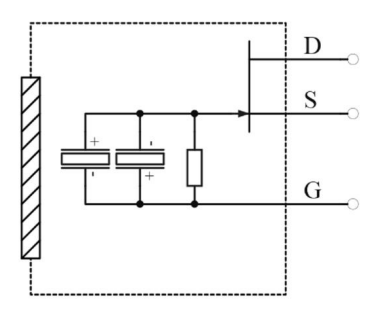

Working principle:
