GS022-HC Pyroelectric Hydrocarbon Sensor
It is a dual-channel pyroelectric hydrocarbon (HC) gas detector based on NDIR (Non-Dispersive Infrared) principle. It is mainly used for high-precision detection of hydrocarbon compounds such as methane, propane, and refrigerants.
Features：
Principle: Based on lithium tantalate (LiTaO₃) single crystal pyroelectric effect + CMOS-MEMS technology, it detects hydrocarbon gas concentration through dual-wavelength infrared absorption method.

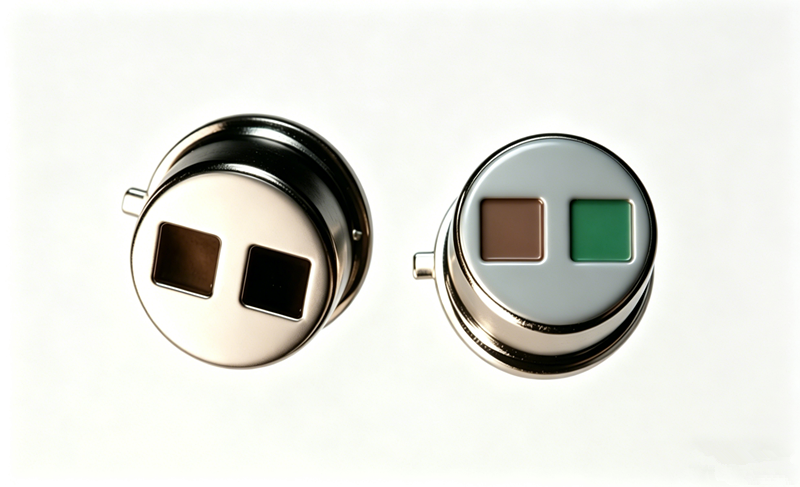

Package: TO-39 metal case, dual-channel (signal + reference), built-in high-precision thermistor for temperature compensation.

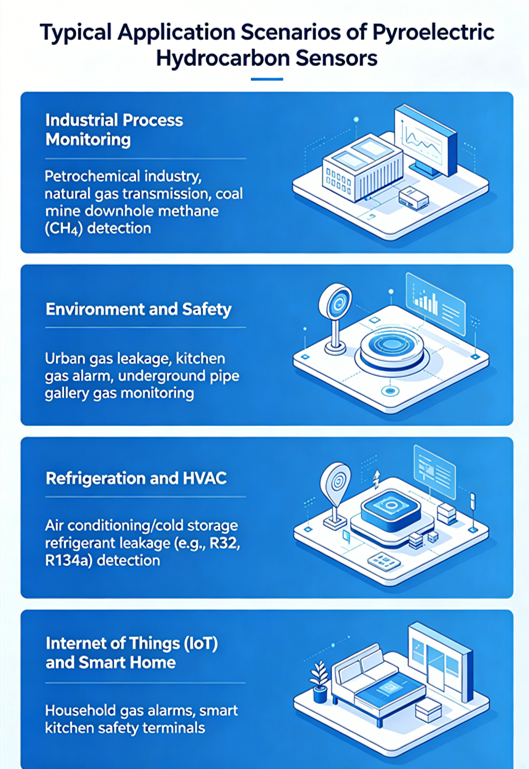

Core Application: NDIR detection and spectral analysis of hydrocarbon gases (CH₄, C₃H₈, refrigerants, etc.).
Parameters:
Parameter Category | Parameter Description | Typical Value |
|---|---|---|
Optoelectronic Parameters | Response Wavelength | Signal channel: 3.3 μm (CH₄ dedicated); Reference channel: 3.91 μm |
Responsivity | >1500 V/W (@3.3 μm) | |
Noise Voltage | <10 nV/√Hz | |
Detectivity | >1.5×10⁸ cm·Hz¹/²/W | |
Electrical & Environmental Parameters | Operating Temperature | −40 ℃ ~ +85 ℃ |
Storage Temperature | −50 ℃ ~ +100 ℃ | |
Thermistor | 10 kΩ @ 25 ℃, B value 3950 K | |
Package Size | TO-39, Diameter 9.2 mm, Height 4.6 mm |
