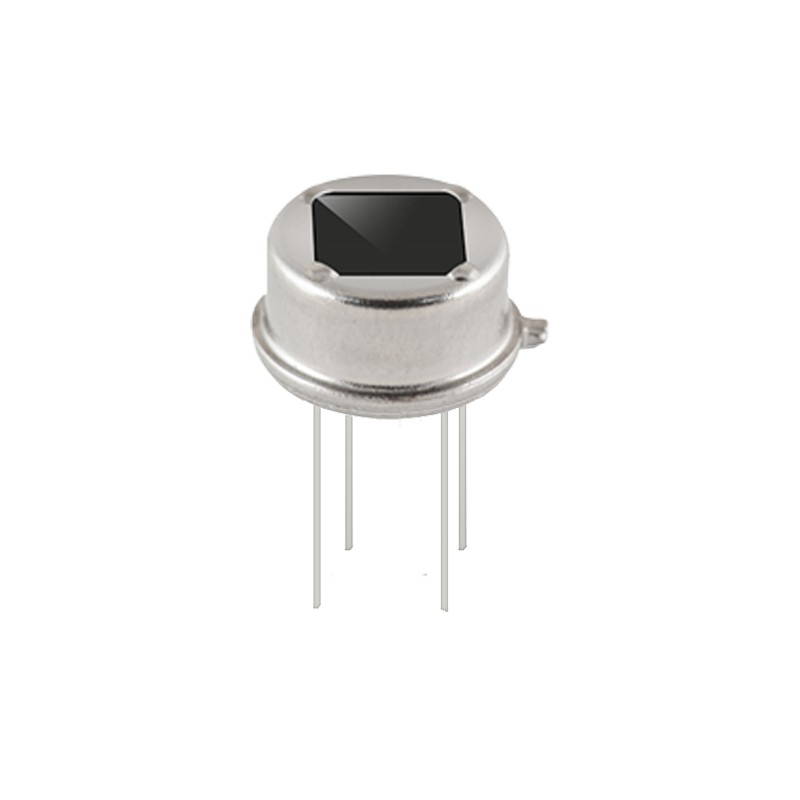

BX404 Pyroelectric Infrared Sensor
BX404 pyroelectric infrared sensoris a type of intelligent PIR sensor which integrates digital circuit and sensitive element in a hermetically sealed package. It interference directlly with up two conventionao PIR sensors via a high impedance differential input. The PIR signal is converted to a digital value on chip. All signal
processing is performed digitally.
Technical data:
Window Size: 4*4mm
Output Signal: Digital signal output
Sensing Distance: 12m (lens SB-F-02) (See lens selection for different distances)
Sensing Angle: 120°(horizontal direction)
Working Voltage: 2.2-3.7V
Static Power Consumption: <12uA
Features:
Digital signal processing, no drift and aging
High power supply rejection ratio, anti-radio frequency interference(mobile phone, WiFi, etc.)
A second-order Butterworth bandpass filter with built-in infrared sensor to shield input interference at other frequencies
Good stability and effective suppression of repeated malfunctions
Low power consumption and simple application circuit
Ontime 2s
1, Limit values (Permanent damage to the sensor will be caused if exceeds the values in the table below)
Parameter | Symbol | Min. value | Max. value | Unit |
Working temp. | TST | -30 | 70 | ℃ |
Any pin limit | Into | -100 | 100 | mA |
Storage temp. | TST | -40 | 80 | ℃ |
2, Working conditions (T=25°C, Vdd=3V, unless other specified)
Dimensions:
